SAILOR 6110 MINI-C GMDSS SYSTEM
SAILOR 6110 GMDSS System is the first system to be the world’s most powerful, user-friendly and reliable satellite transceiver system for all ship tracking, monitoring, messaging and distress communications. SAILOR 6110 mini-C GMDSS provides GMDSS, SSAS and LRIT.
The SAILOR 6110 mini-C is a true next-generation GMDSS solution. Building on the strong foundation of previous SAILOR GMDSS products, it introduces innovative new features and functionality, including touch screen operation through the cutting-edge SAILOR 6018 Message Terminal and an all-new approach to installation and networking.
The TT-00-406110A-00551 SAILOR 6110 mini-C is more than just a way to meet mandatory GMDSS requirements because as part of the innovative SAILOR 6000 Series, it is an integral part of a vessel’s communication system. The mini-C system features true triple functionality as it safely handles all GMDSS, SSAS and LRIT operations on board.
CABLING INNOVATION
SAILOR 6110 mini-C GMDSS uses CAN-BUS (NMEA 2000) and RJ45 cabling, and it comes with all required cables (30m) out of the box.
It is ready to go straight away and expanding it is easier and less costly than with traditional cabling. This flexibility also reduces installation and maintenance costs.
TOUCHSCREEN OPERATION

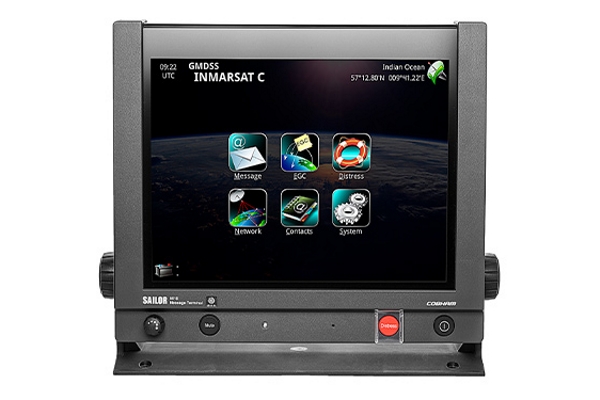

Operation is performed via the new SAILOR 6018 Message Terminal, which stands out as the world's first touch screen, Wheelmarked GMDSS terminal.
The multimedia style interface is user-friendly, which in turn ensures the safe operation of the vessel's IMO safety and tracking systems.
RELIABLE AND ACCURATE
SAILOR 6110 mini-C GMDSS has a brand new transceiver design and operates using a 50 channel GPS module and a high gain omnidirectional antenna.
Ensure accurate satellite fix and position even under adverse conditions. There are no condensation issues and rugged build quality ensures reliable, accurate and continuous operation.
EFFICIENT COMMUNICATION
As part of the SAILOR 6000 GMDSS Series, SAILOR 6110 mini-C GMDSS features ThraneLINK, a unique new system that enables efficient communication within the network.
Engineers can access a vessel's network from a single point for lower maintenance and lifetime costs. The system also identifies new products in a network, making installation easier.
SAILOR 6110 FEATURES INCLUDES:
- First ever approved touch screen terminal for GMDSS use
- External storage via SD card or USB disk
- Innovative approach to cabling for simple networking and expansion
- Accurate, reliable 50 channel GPS module that is also Galileo ready
- ThraneLINK
SAILOR 6110 GMDSS SYSTEM NEW ORDERING DATA:
Part number | New setup antenna cables |
406110A-00521 | NO NMEA2K Mini Device Cable |
406100-946 | 10m NMEA2K Mini Device Cable |
406100-947 | 15m NMEA2K Mini Device Cable |
406100-944 | 30m NMEA2K Mini Device Cable |
406100-945 | 50m NMEA2K Mini Device Cable |
SAILOR 6110 GMDSS SYSTEM OLD ORDERING DATA:
Manufacturer Part Number | Description |
406110A-00500 | SAILOR 6110 GMDSS System 30M Cable |
406110A-00501 | SAILOR 6110 GMDSS System 30M Cable |
406110A-00551 | SAILOR 6110 GMDSS System 50M Cable |

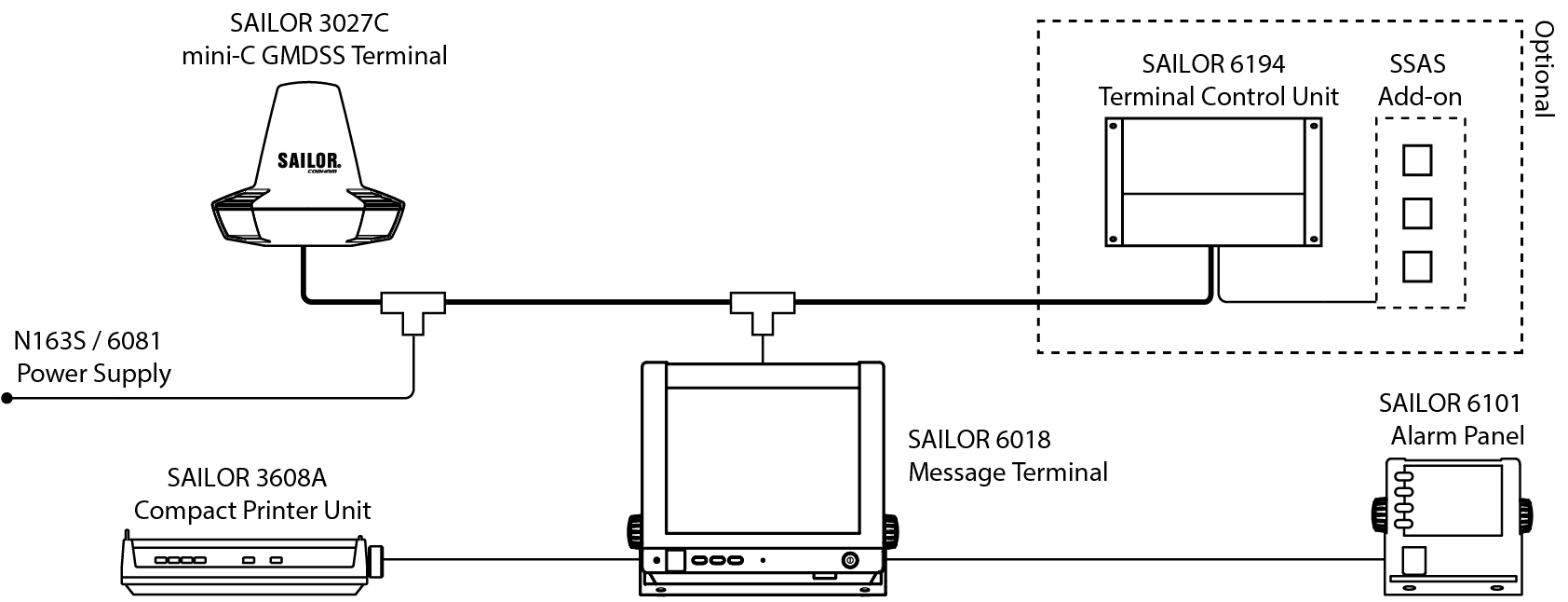

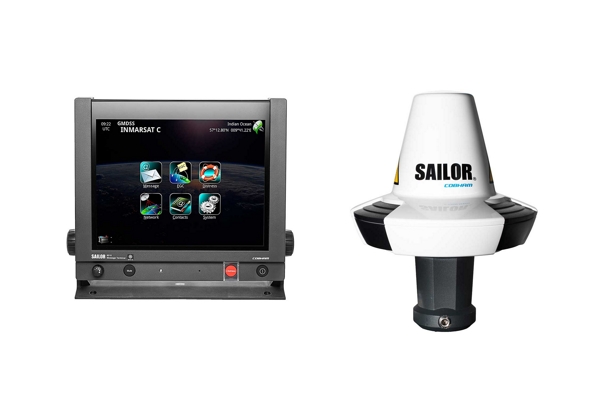

SAILOR 6110 GMDSS SYSTEM INCLUDES:
- SAILOR 3027 GMDSS Terminal Antenna
- SAILOR 6018 Message Terminal
- SAILOR 6001 Keyboard
- NMEA2K Mini Device Antenna Cable not included, order separately
- Mini/Micro NMEA2K Tee
- Micro NMEA2K Tee
- Inline Micro Termination
- Male Mini NMEA2K
- NMEA 0183 talker
- User/installation guide
SAILOR 6110 MINI-C GMDSS SYSTEM COMPARISON TABLE:
SAILOR 6110 mini-C | SAILOR 6120 mini-C | SAILOR 6130 mini-C | SAILOR 6140 mini-C | SAILOR 6150 mini-C | |
GMDSS | X | ||||
SSAS | X | X | |||
LRIT | X | X | X | ||
SafetyNET | X | X | X | X | |
Non-SOLAS Distress | X | ||||
Tracking | X | X | X | X | X |
** Please note SAILOR 6110 GMDSS System TT-00-406110A-00501 replaces earlier model SAILOR 6110 GMDSS System TT-00-406110A-00500 **
SAILOR 6110 MINI-C GMDSS SYSTEM TERMINAL UNIT SPECIFICATIONS:
General specifications | Inmarsat C GMDSS Type Approved |
Wheelmark Approved | |
3027C mini-C Transceiver |

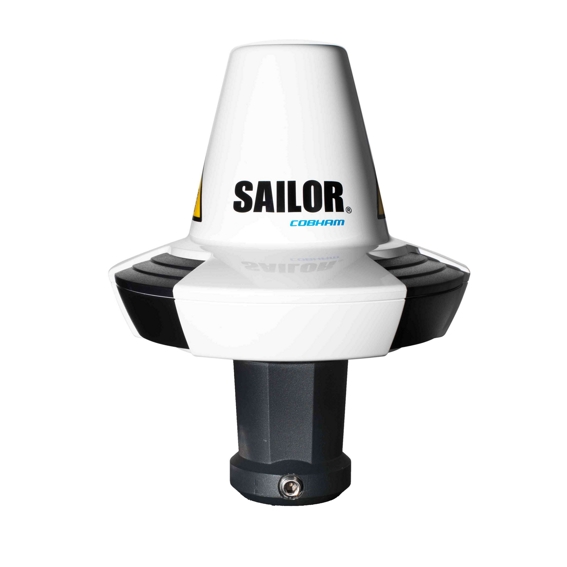

SAILOR 6110 MINI-C GMDSS SYSTEM ANTENNA UNIT SPECIFICATIONS:
G/T | -23.7 dBk at 5° elevation |
EIRP | Min. 7 dBW at 5° elevation |
Antenna elevation | -15° to 90° |
Operating frequencies | Rx Frequency Band: Rx: 1525 - 1545 MHz |
Tx Frequency Band: Tx: 1626.5 - 1646.5 MHz |
SAILOR 6110 MINI-C GMDSS SYSTEM GENERAL SPECIFICATIONS:
Absolute power supply range | 10.5 - 32 VDC |
Nominal power input | 15 VDC |
Power consumption (typical) | Rx: 1.85 W @ 15 VDC |
Tx: 22 W @ 15 VDC | |
GPS module | 50 channel (Galileo ready) |
Transceiver interface | NMEA 2000 DeviceNet Mini-style, Male |
I/O interface | CAN-BUS (NMEA 2000) |
Dimensions | Diameter: 170.5 mm |
Height: 145 mm (without pole mount) | |
Weight | 1.10 kg (without pole mount) |
