SAILOR 6081 Power Supply incl. Charger and Tray for wall mounting 300W/28V DC
- Description
- Information

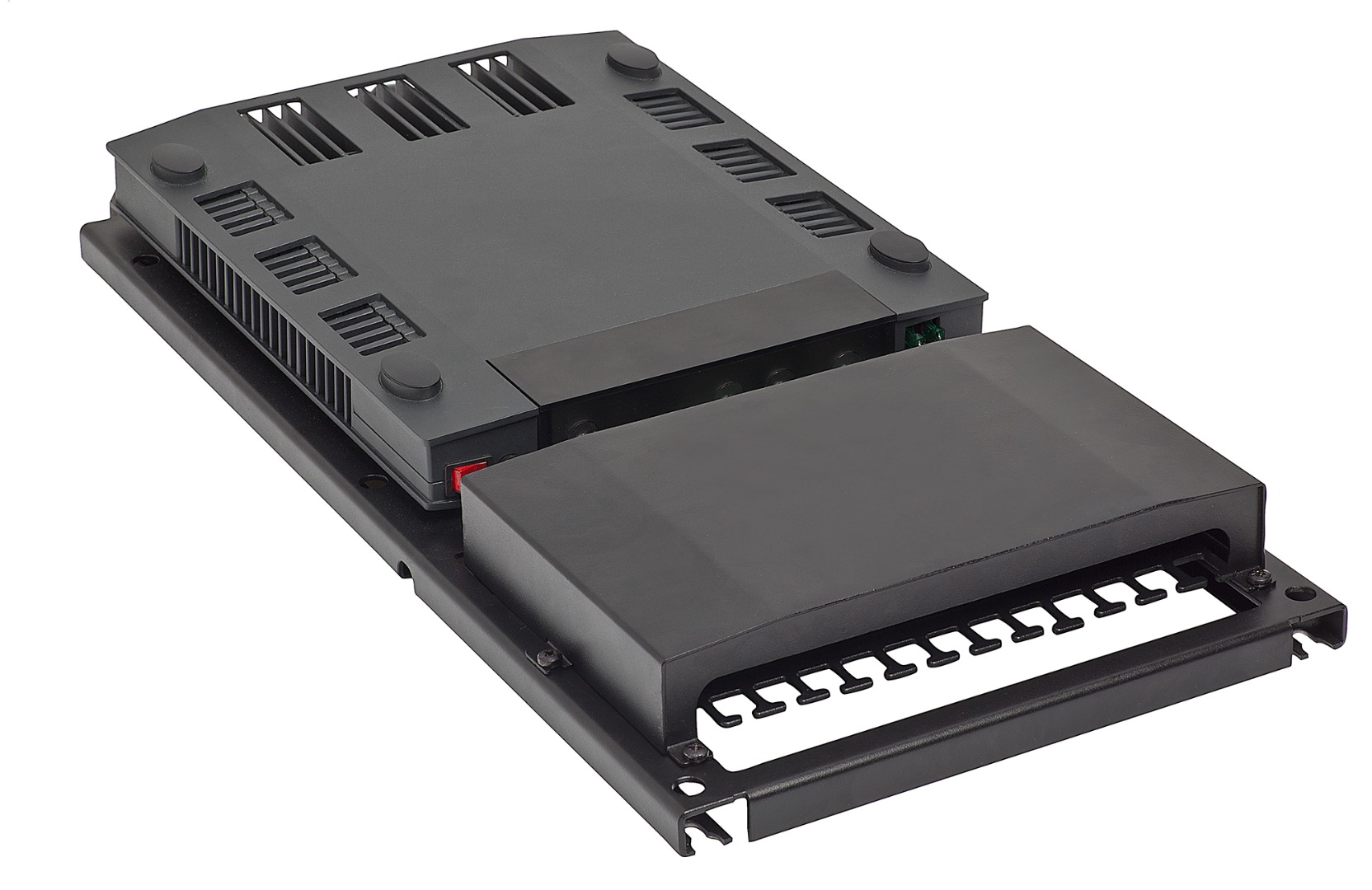

SAILOR 6081 POWER SUPPLY INCL CHARGER AND TRAY FOR WALL MOUNTING
Thrane & Thrane 6081 Power Supply Unit and Charger provides DC power at five DC power outlets (all separately fused) and a 15 V DC power outlet for SAILOR 3027 mini-C Transceiver. It also charges automatically a connected battery.
If the AC power fails the power supply delivers DC power from the connected battery. You can access control and monitoring data via the Ethernet interface. There are relay outputs for AC outage and battery voltage alarm. The power supply provides up to 1480 W in total.
Depending on the output power needed, the Power Supply Unit and Charger includes up to four SAILOR 6080 units and one connector panel. The SAILOR 6081 can be upgraded on site to more output power by adding up to three SAILOR 6080 units.
The following SAILOR 6081 Models are available:
| Model | Peak output power | Part Number |
|---|---|---|
SAILOR 6081 | Max. 370 W | 406081A-00500 |
SAILOR 6081 with 1 additional SAILOR 6080 | Max. 740 W | 406081A-00501 |
SAILOR 6081 with 2 additional SAILOR 6080 | Max. 1110 W | 406081A-00502 |
SAILOR 6081 with 3 additional SAILOR 6080 | Max. 1480 W | 406081A-00503 |
The following table shows the electrical and environmental specifications of the TT-01-406081A-00500 Power Supply Unit and Charger.
Specifications for output power | SAILOR 6081 | SAILOR 6081 + 1 SAILOR 6080 | SAILOR 6081 + 2 SAILOR 6080 | SAILOR 6081 + 3 SAILOR 6080 |
100 — 240 VAC continuous peak (2 min.) | 300 W 370 W | 600 W 740 W | 900 W 1110 W | 1200 W 1480 W |
90 — 100 VAC continuous peak (2 min.) | 270 W 333 W | 500 W 616 W | 730 W 899 W | 960 W 1182 W |
| Specifications | Value |
| DC output (nominal) | 28 V or according to battery requirements. |
| Alarm | In case of AC power failure or if battery power is outside allowed range |
| IP rating in high voltage (>42 V) | IP 32 (mounted vertically on wall) |
| IP rating in other areas | IP 22 (mounted vertically on wall) |
Specifications | Value |
Operating temperature | -15° to +55° C |
Storage temperature | -40° to +80° C |
Cooling | No forced cooling required. |
Survival temperature (power on) | -40° to +80° C |
Dimensions SAILOR 6081: |
|
Weight SAILOR 6081: |
|
Compass safe distance | 30 cm |

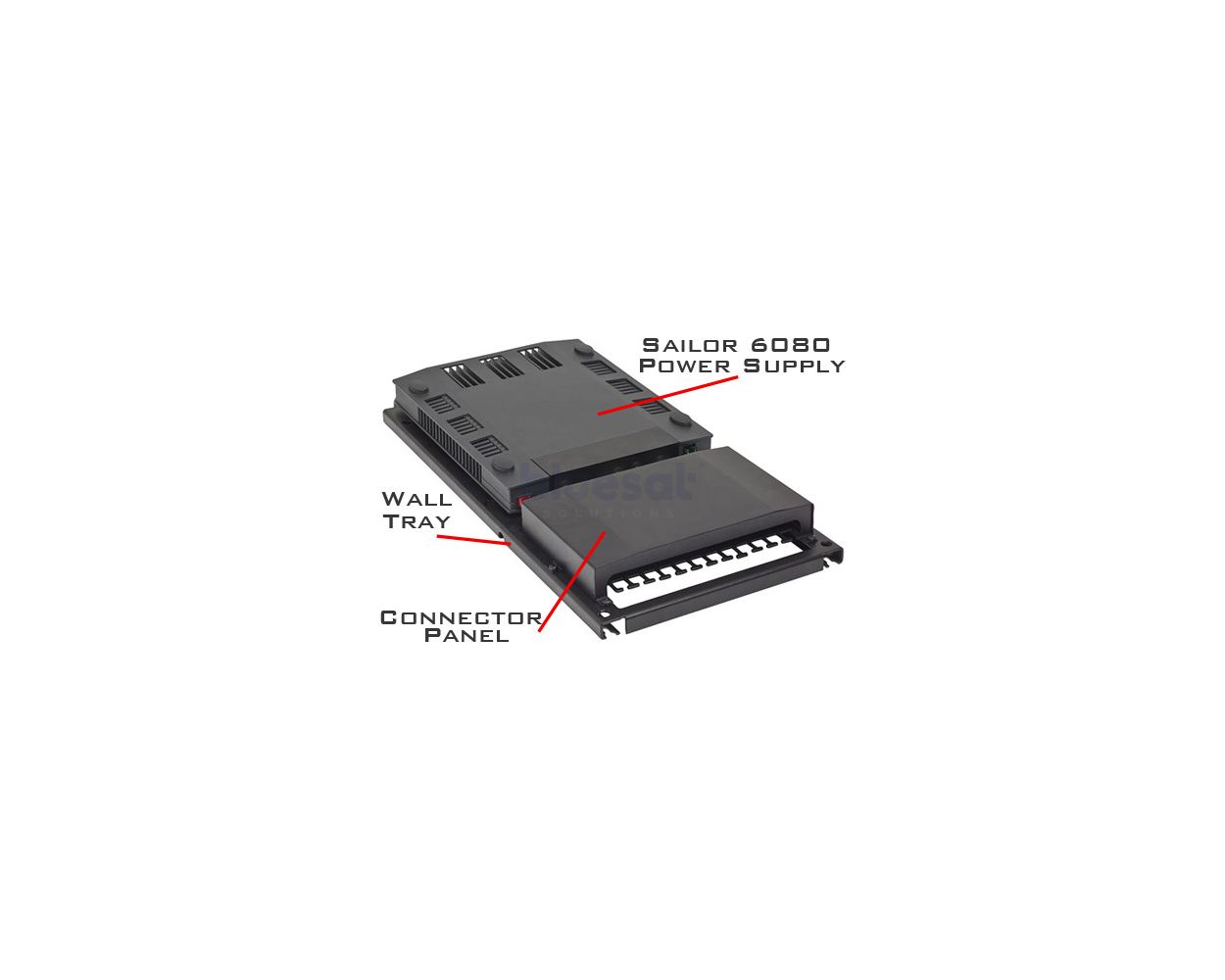

Depending on the output power needed, the 406081A-00500 Power Supply Unit and Charger includes up to four SAILOR 6080 units and one connector panel. The SAILOR 6081 can be upgraded on site to more output power by adding up to three SAILOR 6080 units. The connectors for DC power are placed at the same end of the unit for easy mounting and installation.
The connection between the Power Supply unit(s) and the connector panel are protected against water ingress by a protection cover. A cable relief bracket to secure heavy cables are integrated in the wall-mount tray. When mounted vertically the Power Supply Unit and Charger and the SAILOR 6080 Power Supply fulfill IP32 in areas with more than 42 V and IP22 in other areas.
THRANE TT-01-406081A-00500 POWER SUPPLY UNIT AND CHARGER FEATURES:
- Output voltage according to battery requirements (range: 24 — 31.2 V)
- 15 V DC output for SAILOR 3027 Terminal
- DC connectors, 2x10A, 2x20A and 1x50A
- Up to 1480 W peak output power
- AC input (100-240 VAC operating) with fuse (6.3 A) with Power Factor Correction
- Automatic detection of input voltage range
- AC alarm and battery voltage alarm
- Ethernet connector for monitoring and control information
- Battery charging function
- Short circuit protection
- Over-temperature protection (shutdown with automatic restart)
- Switch over to battery power in case of AC supply failure
- No forced cooling required
- Link to control up to 8 Power Supply Unit and Charger units connected to the same battery
- Upgrade on site by service personnel
- IP 32 for internal high voltage areas (>42 V), IP 22 in other areas when vertically mounted (wall) and connector panel is facing down
- Approval and certification: IEC 60945 Maritime approval, Wheelmark
