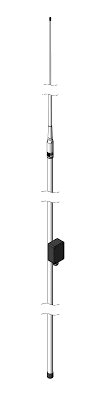

SAILOR Marine Antenna HF/SSB KUM600-2 Rx including mounting kit N70F

Frequency range (MHz): 0.15-30.0 Maximum power (Watts): 750PEP Maximum HF Voltage (kV): 9 Insulation Resistance: > 10 E9 Static Capacitance (pF): 70

Categories: Marine Communication Systems Brand: AC Antennas Always in Stock

SAILOR MARINE ANTENNA HF/SSB KUM600-2 RX INCLUDING MOUNTING KIT N70F

MARINE AND LAND BASED HF/SSB ANTENNA

KUM600-2 is a 2 section omnidirectional side-fed HF transceiver antenna for automatic antenna tuned systems for both leisure and commercial vessels. The KUM600 - 2 is manufactured in premium quality materials in order to prevent galvanic corrosion. Radiating elements are made of copper.

Electrical specifications

Frequency range (MHz): 0.15-30.0
Maximum power (Watts): 750PEP
Maximum HF Voltage (kV): 9
Insulation Resistance: > 10 E9
Static Capacitance (pF): 70
Polarization: Vertical
DC - Shorted: No

Mechanical specifications

Length (m/ft): 6.0/19.7
Weight (kg/lbs): 2.5/5.6
Wind load @ 160 km/h (N): 150
Material: Fibreglass
Colour: White polyurethane lacquer
Temperature range (°C/°F):  -55 to +60    / -67 to +140
Ingress Protection:  IP66

Two mounts per antenna (not included):N070F, N075F, N080F, N085F & N090F.
