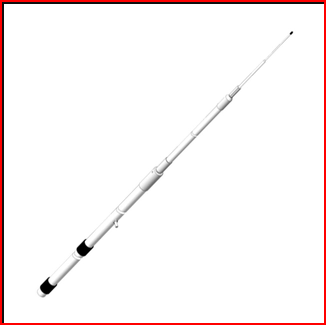

KUM803 Marine and Land Based HF/SSB Antenna
KUM803 Marine and Land Based HF/SSB Antenna
KUM803 Marine and Land Based HF/SSB Antenna from AC Antennas
- Description
- Information
KUM803 MARINE AND LAND BASED HF/SSB ANTENNA FROM AC ANTENNAS
KUM803 is a 3 section omnidirectional side-fed HF transceiver antenna for automatic antenna tuned systems for both leisure and commercial vessels. The KUM803 is manufactured in premium quality materials in order to prevent galvanic corrosion. Radiating elements are made of copper.
KUM803 has been sold worldwide for more than three decades. The antenna is subject for improvement at all times. The antenna has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on sea and land.
| Thread: | Clamp set |
| Frequency: | 1.40-30.00 |
| Gain-dBd: | 0.00 |
| Gain Marine dB: | 0.00 |
| Power: | 1 200 |
| Power search: | 1200 |
| Length inch: | 26.24 |
| Weight lbs: | 12.76 |
| Frequency search: | 0-30 MHz |
| Length m: | 8.00 |
| Weight kg: | 5.80 |
| Connector Termination: | Side Feed |
Product number: 280300-T
